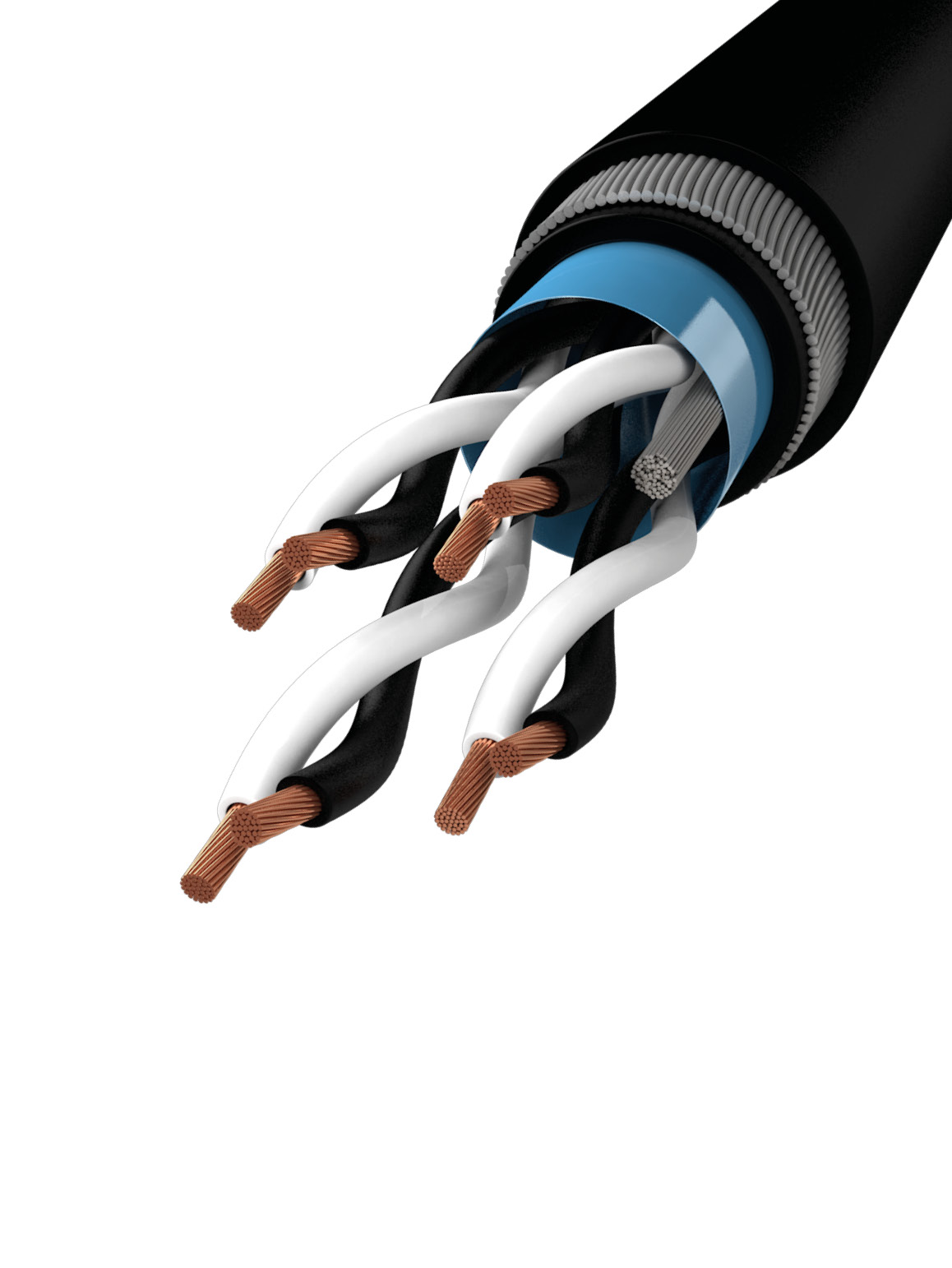

RE-2X(st)HSWAH is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.
Plain annealed stranded Cu wires, class 2 // 1 orange communication core (0,5 mm2)
XLPE
Pair: | black and white |
Triple: | black, white and red |
Halogen free compound, black
Screen: Electrostatic plastic laminated aluminumfoil (AL-PES)
Armament: Round galvanized steel wire
Halogen free compound, black or blue 5015
Cables with blue outer sheath are used for intrinsically safe installation
Tinned Cu (7x0.30 mm)
-30° C to +90° C
300/500 V
Conductor/conductor: | 2000 V |
Conductor/screen: | 1000 V |
12 x cable diameter
Insulation resistant: min 5000 M.Ωxkm
Capacitance: max 85 nF/km (800 Hz)
Unbalanced capacitance: max 500 pF/500 m
Oil resistance: 70° C / 4 hours
SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
---|---|---|---|---|---|---|---|
- | - | 1x2x1,5 | - | D./Cut | 11,5 | 299 | |
