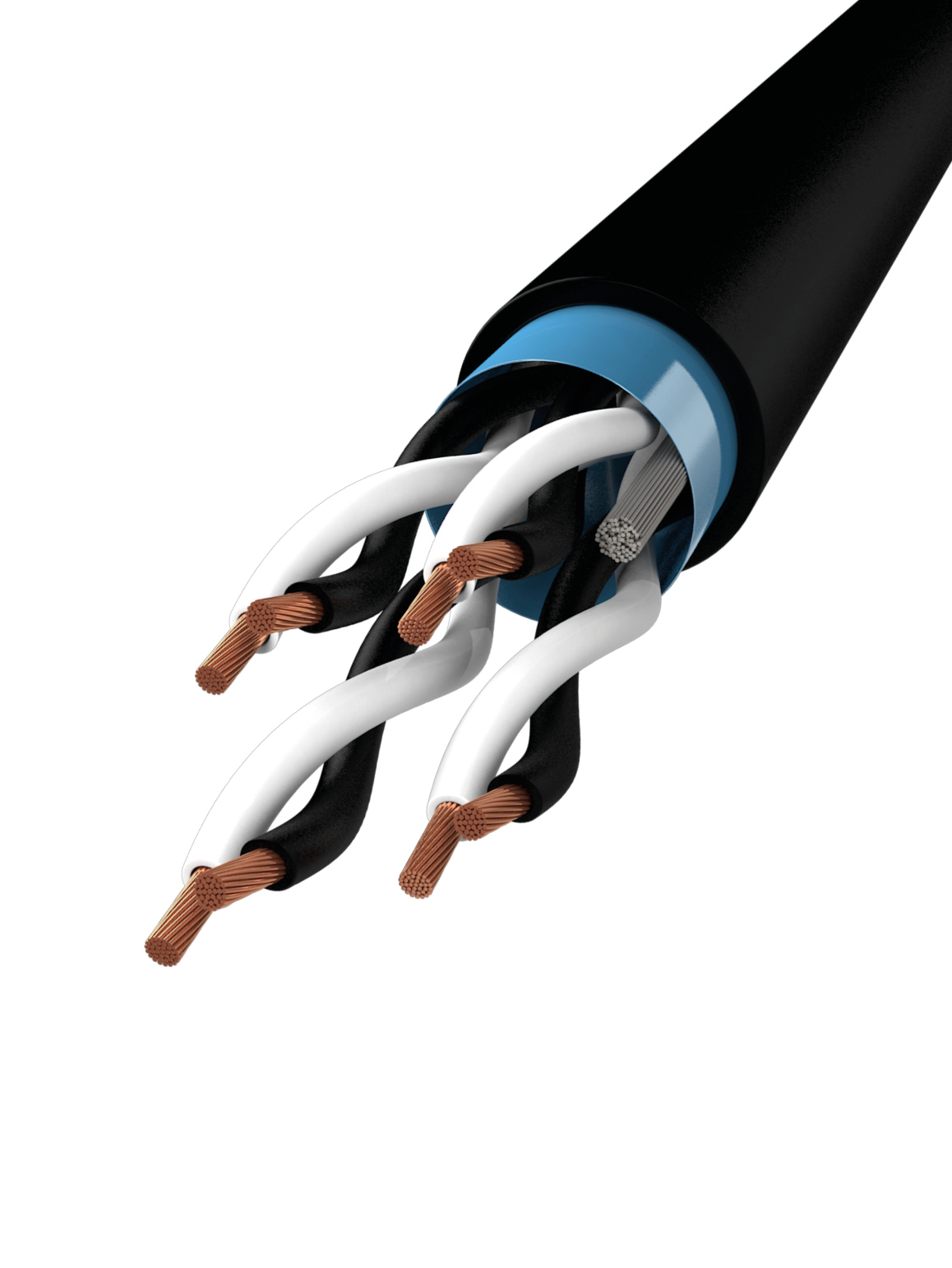

RE-2Y(st)Y, joint screen - 300/500 V

Application

RE-2Y(st)Y is used in low-voltage, communications and data facilities for analog as well as digital signal transmission.

Construction

Conductor

Cu threads, class 2
1 orange communication core (0.5 mm2)

Insulation

PE

Conductor color
Pair: black and white, numbered
Triple: black, white and red, numbered
Screen

Electrostatic screen of plastic laminated aluminiumfoil (AL-PES)

Outer sheath

PVC, black or blue 5015, UV resistant
Cables with blue outer sheath are used for intrinsically safe installation

Drainwire

Tinned Cu (7x0.30 mm)

Technical data

Working temperature
Flexible: -5° C to +50° C
Fixed: -30° C to +70° C
Rated voltage

300/500 V

Test voltage
Conductor/conductor:  2000 V
Conductor/screen: 1000 V
Bend radius

7.5 x cable diameter

Technical comments

Insulation resistance: Min. 5000 MOhmxkm
Capacitans (800 Hz) max. 85 nF/km

Approvals

IEC 60332-1, IEC 60332-3, VDE 0207, CE, RoHS
Bending radius 7,5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Max. working temp. +70° C
Min. working temperature -30° C
Outdoor use
UV-resistant
Withstands freezing
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
10401050 5704403050291 1x2x0,5 - D./Cut 5,5 45
10401100 5704403050307 1x2x1 - D./Cut 6,3 61
10402050 5704403050338 2x2x0,5 - D./Cut 7,3 75
10402100 5704403050345 2x2x1 - D./Cut 8,2 100
10403100 5704403050284 1x3x1 - D./Cut 6,4 70
10404050 5704403050369 4x2x0,5 - D./Cut 9,0 110
10408050 5704403050352 8x2x0,5 - D./Cut 11,4 180
10424050 5704403050376 24x2x0,5 - D./Cut 18,6 480
