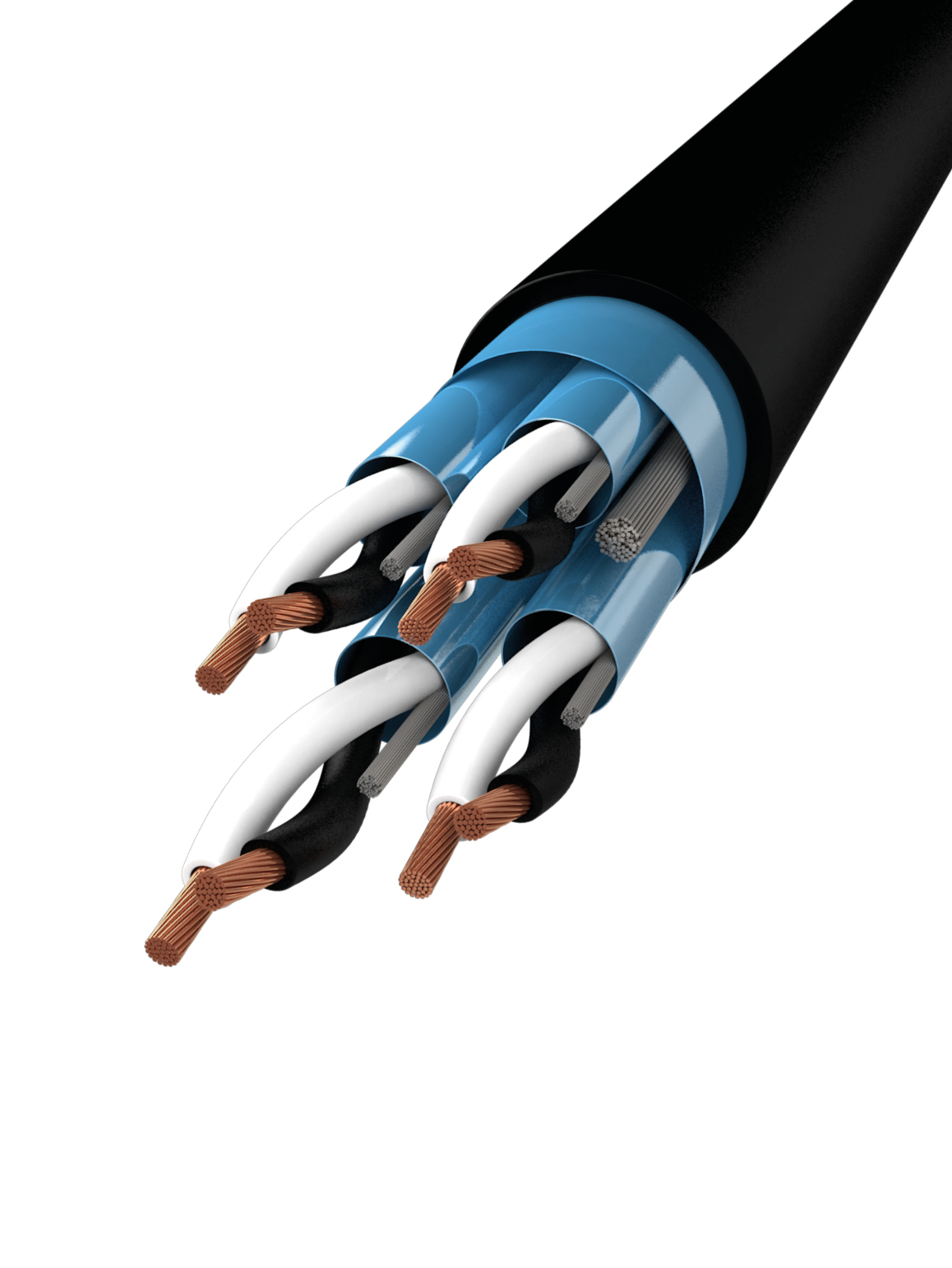

RE-2Y(st)Y-PiMF is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.
Stranded Cu
PE
Conductor A: black with numbering
Conductor B: white with numbering
Shielded pairs: AL/PES tape (0.60mm2 tinned Cu with drain wire)
Overall shielding: AL/PES tape (7x0.3mm2 tinned Cu with drain wire)
PVC, black
-30º C to +70º C
300/500 V
Conductor/screen: 1000 V, conductor/conductor: 2000 V
7,5 x cable diameter
Insulation resistance: 5 GOhm x km
Operating capacity: 115 nF/km
SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Color | Diameter (mm)* | Weight (kg/km)* |
---|---|---|---|---|---|---|---|
10425020250 | 5704403047017 | 2x2x0,5 | - | D./Cut | Sort | 8,2 | 88 |
10425040250 | 5704403114610 | 4x2x0,5 | - | D./Cut | Sort | 10,5 | 138 |
10425070250 | 5704403114627 | 7x2x0,5 | - | D./Cut | Sort | - | - |
10426140250 | 5704403045440 | 14x2x0,5 | - | D./Cut | Sort | - | - |
10425240250 | 5704403114603 | 24x2x0,5 | - | D./Cut | Sort | 21,8 | 619 |
