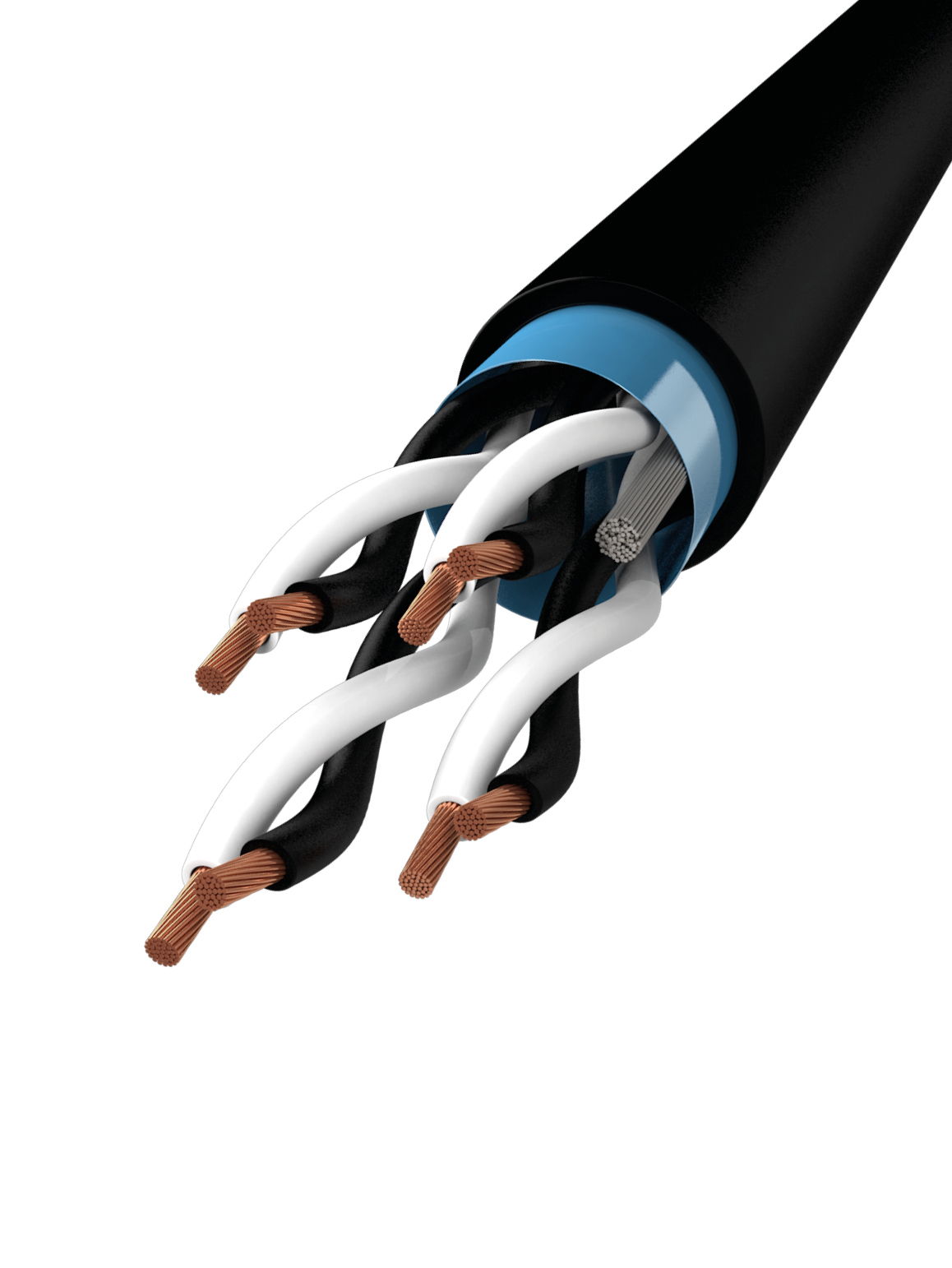

RE-2Y(st)Yv, joint screen - 300/500 V

Application

RE-2Y(st)Yv is a data cable with static screen and enhanced outer sheath. Suited for data transmission over great lenghts with short impuls time. The static screen protects from outer electrical influences. The data cable is with its enhanced outer sheath suited for fixed installation in dry as well as humid spaces. The cable is UV-resistant and can be placed directly in the ground.

Construction

Conductor

Cu threads, class 2
1 orange communication core (0.5 mm2)

Insulation

PE

Conductor color
Pair:   black and white, numbered (1/1, 2/2)
  a-core = black
b-core = white
Screen

Electrostatic screen of plastic laminated aluminumfoil (AL-PES)

Outer sheath

Enhanced PVC, black or blue 5015, UV resistant
Cables with blue outer sheath are used for intrinsically safe installation

Drainwire

Tinned Cu

Technical data

Working temperature
Flexible: -5° C to +50° C
Fixed: -30° C to +70° C
Rated voltage

300/500 V

Test voltage
Conductor/conductor:  2000 V
Conductor/screen: 1000 V
Bend radius

10 x cable diameter

Approvals

IEC 60332-1, IEC 60332-3, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
Max. working temp. +70° C
Min. working temperature -30° C
Outdoor use
UV-resistant
Withstands freezing
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Winding Color Diameter (mm)* Weight (kg/km)*
10401050 5704403050291 1x2x0,5 - D./Cut Sort 5,5 45
10401075 5704403025510 1x2x0,75 - D./Cut Sort 7,6 72
10401075B 5704403035762 1x2x0,75 - D./Cut Blå 7,6 72
10402050 5704403050388 2x2x0,5 - D./Cut Sort 7,3 75
10402075 5704403002023 2x2x0,75 - D./Cut Sort 10,0 112
10402075B 5704403035779 2x2x0,75 - D./Cut Blå 10,0 112
10404050 5704403050369 4x2x0,5 - D./Cut Sort 9,0 110
10404075 5704403025534 4x2x0,75 - D./Cut Sort 11,5 170
10404075B 5704403035199 4x2x0,75 - D./Cut Blå 11,5 170
10407050 5704403114597 7x2x0,5 - D./Cut Sort - -
10408075 5704403025558 8x2x0,75 - D./Cut Sort 13,5 265
10408075B 5704403035205 8x2x0,75 - D./Cut Blå 13,5 265
10412075 5704403042296 12x2x0,75 - D./Cut Sort 15,5 350
10412075B 5704403035700 12x2x0,75 - D./Cut Blå 15,5 350
10414050 5704403114580 14x2x0,5 - D./Cut Sort - -
10416075 5704403035731 16x2x0,75 - D./Cut Sort 18,0 450
10416075B 5704403035724 16x2x0,75 - D./Cut Blå 18,0 450
10424050 5704403050376 24x2x0,5 - D./Cut Sort 16,5 380
10424075 5704403035748 24x2x0,75 - D./Cut Sort 21,5 650
10424075B 5704403042289 24x2x0,75 - D./Cut Blå 21,5 650
