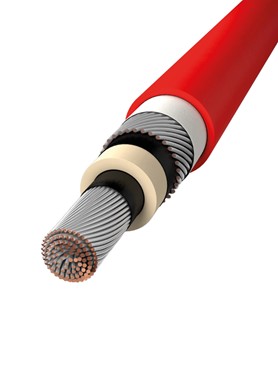

The flexible single core SCANFLEX® NTMCGCWOEU power supply cable is usable for short connections of mobile transformer substations to overhead lines, also for use in railway vehicles, switching stations and control panels.
Finely stranded tinned, electrolytic copper, cl. 5
Ethylene propylene rubber (EPR)
Spinning of tinned copper wires with cross section 16 or 25 mm²
5GM3 compound, red
Fixed: -40° C to +90° C
Flexible: -25° C to +60° C
18/30 kV
43 kV
Fixed: 6 x cable diameter
Flexible: 10 x cable diameter
SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
---|---|---|---|---|---|---|---|
505702501 | 5704403185528 | 1x25/16 | 189 | Drum | 35,3 | 1600 | |
505703501 | 5704403185306 | 1x35/16 | 234 | Drum | 37,3 | 1830 | |
505705001 | 5704403185535 | 1x50/16 | 294 | Drum | 38,9 | 2030 | |
505707001 | 5704403185542 | 1x70/16 | 360 | Drum | 41,0 | 2325 | |
505709501 | 5704403185559 | 1x95/16 | 434 | Drum | 42,4 | 2600 | |
505712001 | 5704403185566 | 1x120/16 | 505 | Drum | 43,9 | 2900 | |
505715001 | 5704403185573 | 1x150/25 | 582 | Drum | 46,8 | 3385 | |
505718501 | 5704403185580 | 1x185/25 | 664 | Drum | 50,0 | 3940 | |
505724001 | 5704403185597 | 1x240/25 | 782 | Drum | 51,8 | 4485 | |
